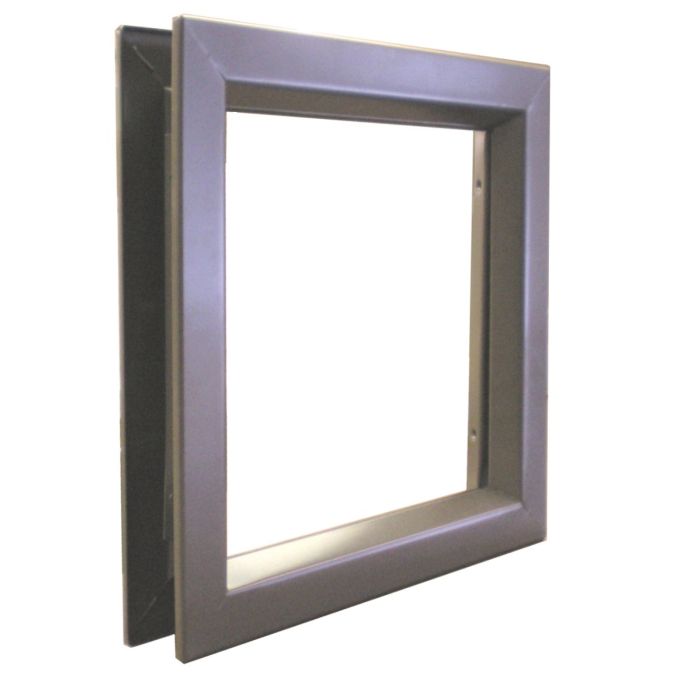

VLFEZ - Beveled Vision Lite-6"W x 27"H-Pyran Platinum - PPF-SC Beige
Complete Individually-Packaged Vision Lite Kit with Pyran Platinum F by SaftiFirst Glazing & Applied Tape.
Images may not be representative of actual product.
Material: 20 gauge CRS frame. Min Size 3" x 3", Max 60" x 104". See Fire Rating Below.
Construction: 1-1/4" trim, with mitered and welded corners. Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side.
Door: For 1-3/4" door. For other sizes, see VLFIG and VLFEZIG.
Fasteners: #8 x 1" flathead phillips SMS.
Glass: 3/16" - 1/4" glazing to be ordered separately from Air Louvers Glazing Section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire rated applications. Visible light is 2" under rough opening size. Glass size is 1" under order size. See VLFEZIG for thicker glazing.
Fire-Rated Air Louvers Glazing to fit this vision frame: WS, PYRO, PPF, KFRF.
Fire-Rating, Testing & Listings: When installed in properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. See glazing ratings for maximum exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure. See detailed installation instructions.
| Shipping Time | 3-4 Business Days |
|---|---|
| Availability | Made to Order |
| SKU | VLFEZ627SB-PPF-PAK |
| Submittal | |
| Extinguisher Manufacturer | Air Louvers |
